TYPE R 36MM SWAP HUBS- 97-01 Acura Integra Type-R K20 K24

Sale price$279.00

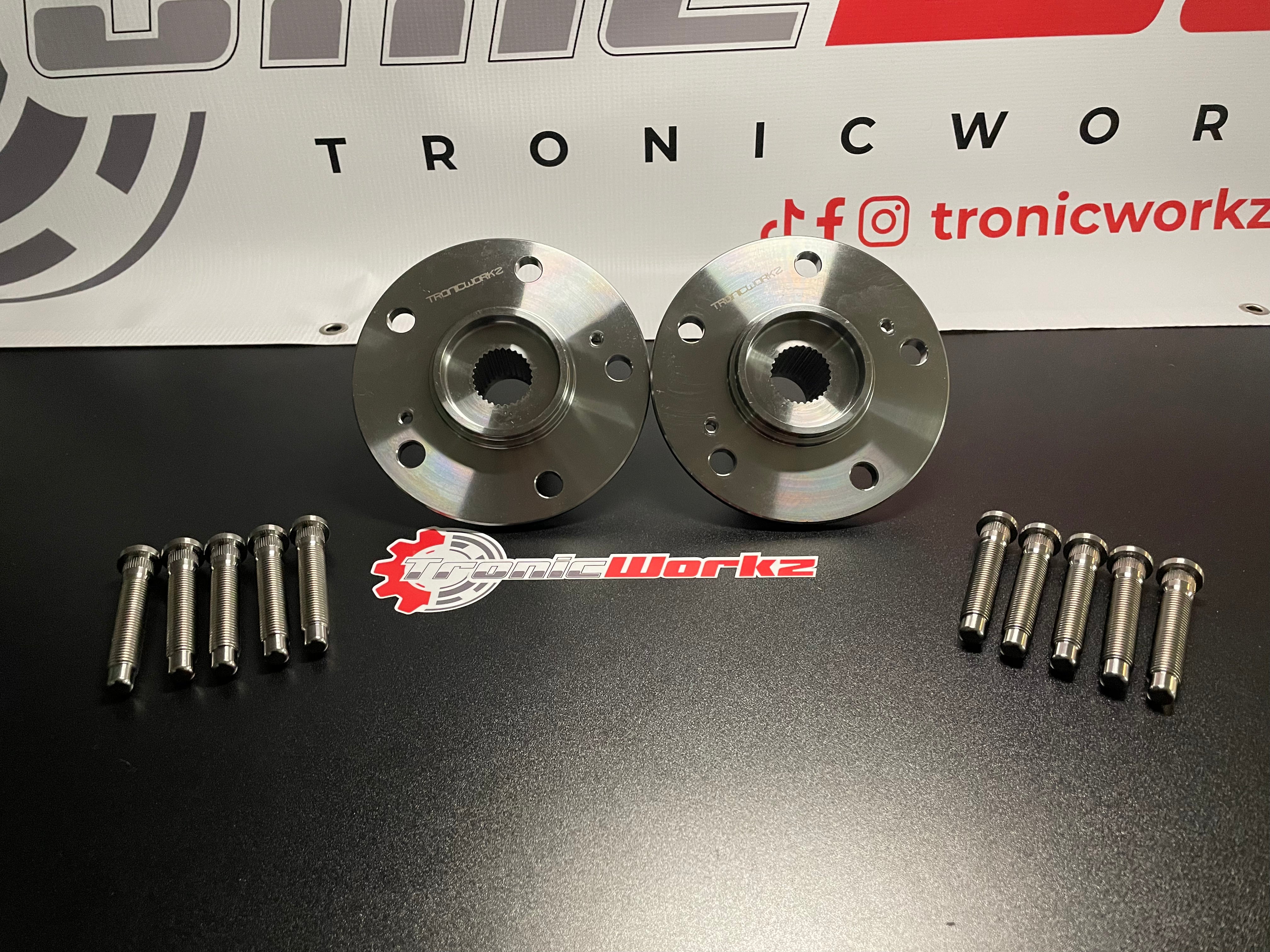

TRONICWORKZ 36MM SWAP HUBS- 97-01 Acura Integra Type-R K20 K24.



Note : Includes 10 Tintanium extended studs


OEM style or aftermarket Honda studs won’t work.


 studs that will work  : 610-410.1



knurl has to be 12.9 mm or .509 in.



36mm Swap Hubs / USDM 1997-2001 Acura Integra Type R / JDM 1997-2000 Honda Civic Type R / 5x114.3mm / 43mm I.D. Wheel Bearing

These hybrid hubs share identical external dimensions with the original USDM 1997-2001 Acura Integra Type R and JDM 1997-2000 Honda Civic Type R wheel hubs they replace; however, their center bores have been machined to accept the larger 28 tooth spline pattern found on “36mm” Honda/Acura axles.

Accepts the larger 28 tooth spline axles these use a 36mm axle nut socket

Precision ground 43mm bearing journals

Maintains OE rotor-centric attributes and offset

Fits: USDM 1997, 1998, 2000, and 2001 Acura Integra Type R models

JDM 1997-2000 Honda Civic Type R models with 43mm I.D. wheel bearings


USDM Acura Integra Type R models use a 43mm I.D. wheel bearing, just like all other 1994-2001 Acura Integras. In fact, all 1994-2001 Acura Integras, including the Type R, use the exact same knuckle. Because of this, you may use these hubs with any USDM 1994-2001 Acura Integra knuckle if desiring to convert from 4-lug to 5-lug. Just note that you will also need to upgrade to USDM ITR brake rotors and calipers.


These hubs will NOT fit JDM/UK/AU Integra Type R models (as their wheel bearings are larger.

Style: TYPE R 36MM SWAP HUBS- 97-01 Acura Integra Type-R K20 K24
