Tronicworkz Cam Trigger Kit - B series

The use of this kit allows you to change from the factory honda mag sensors in the distributor to a more precise digital signal from this sensor.


Many aftermarket Computer's read the Hall signal much better than they do the OEM signal from the distributor. A lot of times you'll notice a smoother idle & much smoother power at high rpm. This also allows complete removal of the factory distributor when a multi channel CDI box & individual coils are used with it.


If you want to keep a single channel ignition box & the distributor, then this setup can still be used.


Another option is to use 3 wire smart coils and no CDI box. These signals are on the input side of the computer, while the ignition system is on the output. Any combination of ignition box/coils will work.


Kit consists of:


1 Tronicworkz cam gear that's been machined & custom fit with rare earth magnets installed in it.

1 Tronicworkz matching Intake cam gear

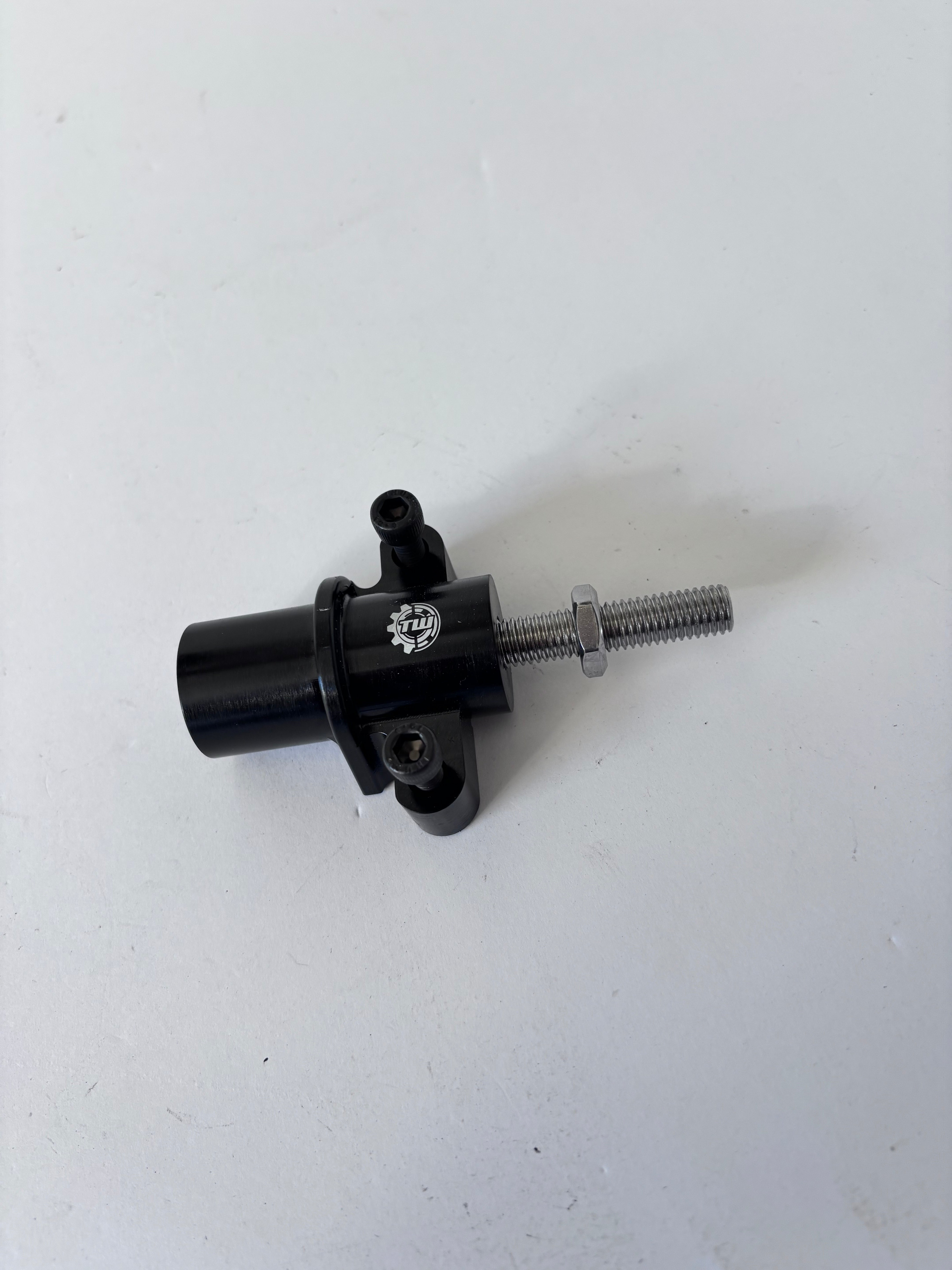

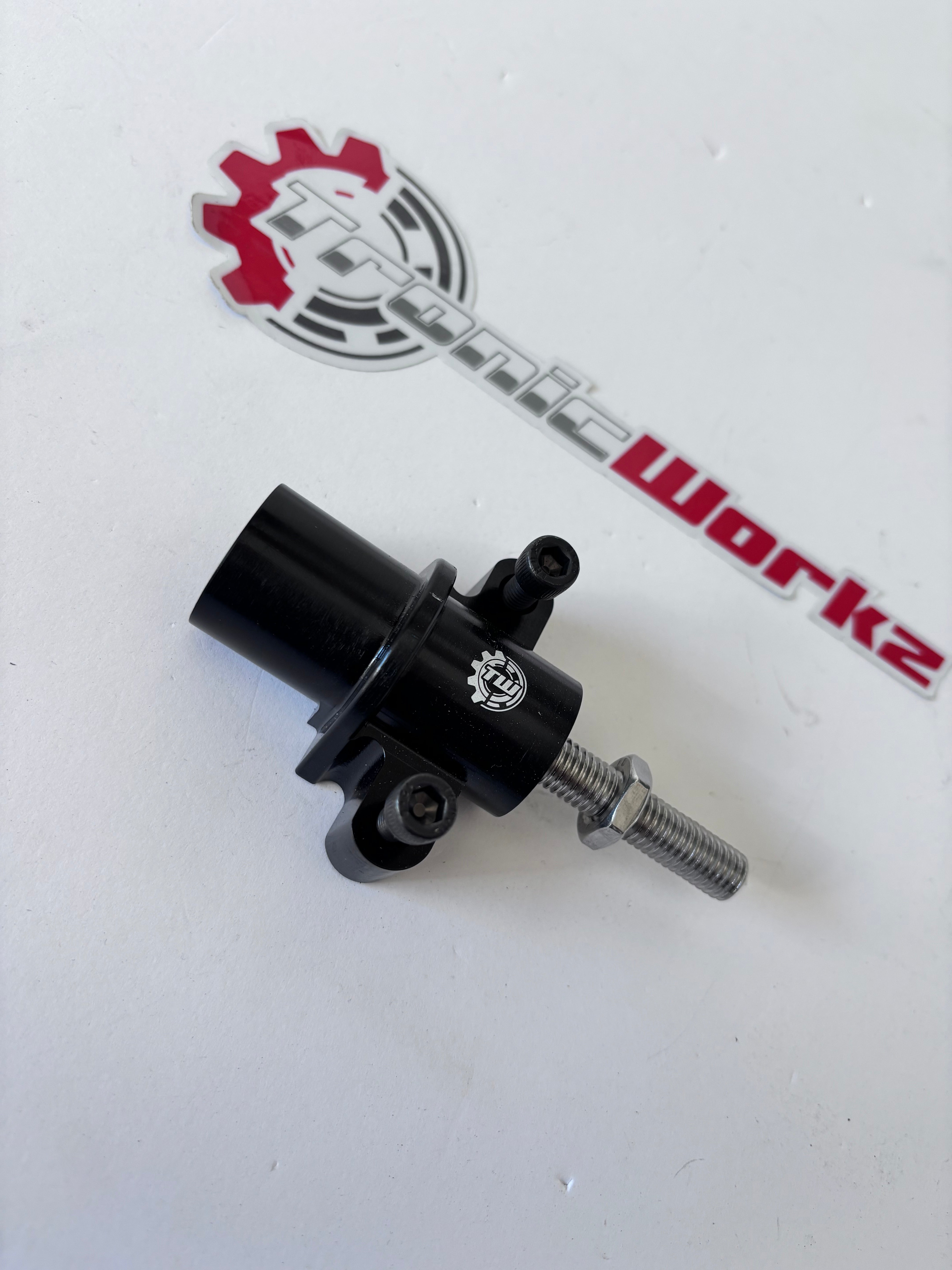

1 Dual Pole hall sensor & it's mating connector.

1 billet sensor bracket



This can not be used with a stock computer.

Filters

Filters
Sort by:

1 product

B-Series Cam Trigger KitB-Series Cam Trigger Kit
B-Series Cam Trigger Kit Sale price$399.00
