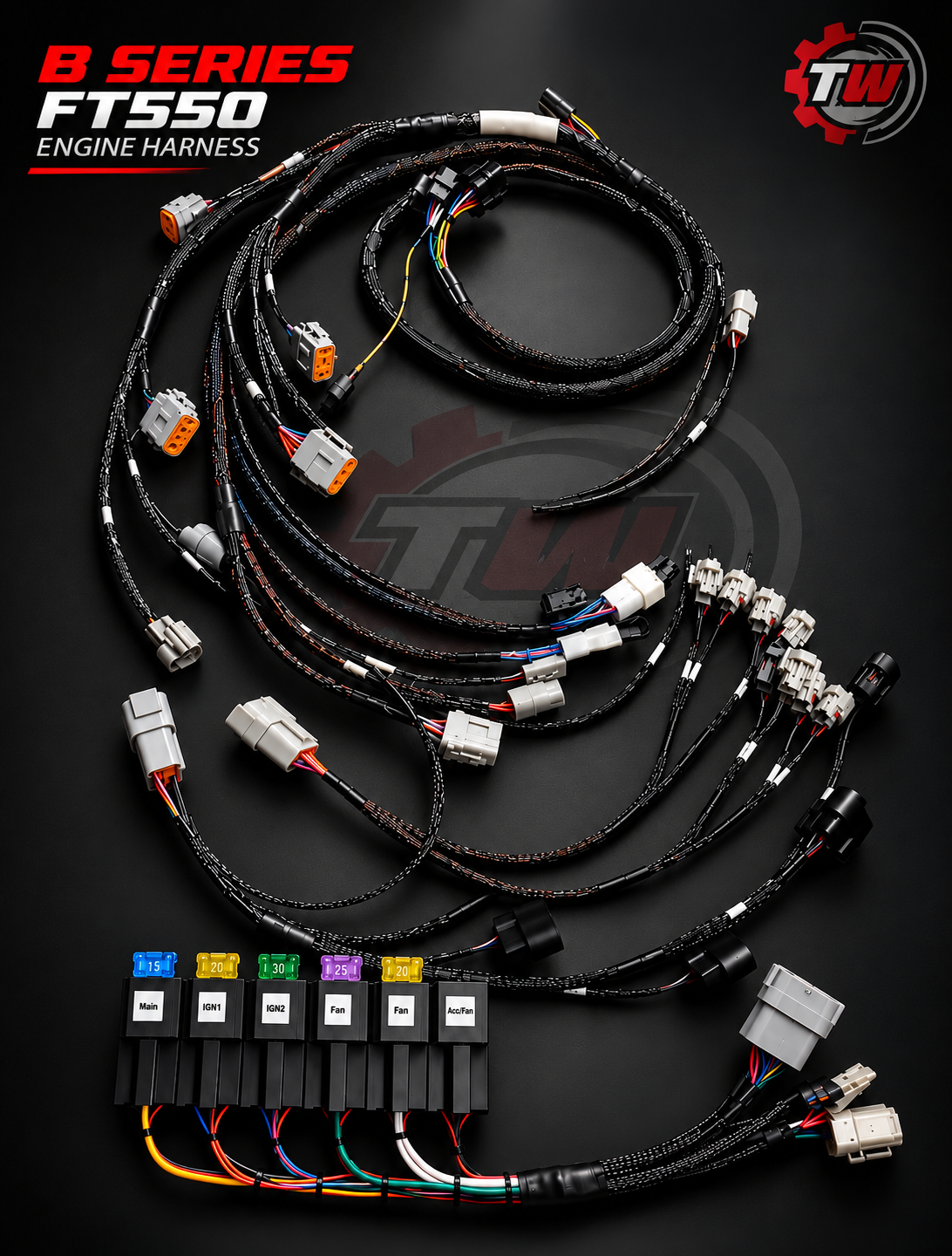

Ft550 B SERIES ENGINE LOOM
Features
* Supports up to 8 injectors
* Separate detachable injector sub-harness
* Separate detachable ignition coil sub-harness
* Dedicated CAN2 wiring with power and ground
* Front and rear wheel speed inputs
* Built for advanced motorsport ECU installations (FuelTech, etc.)
This is a very complete motorsport harness, supporting virtually every sensor and actuator needed for:
* Naturally aspirated builds
* Turbo builds
* Flex fuel
* Data logging
* Traction control (front/rear speed)
* Boost control
* Peak & Hold or saturated injectors
Main Engine Connections
- Detachable Injector Harness
- Detachable Coil Harness
- Cam Trigger
- TPS (Throttle Position Sensor)
- ECT (Engine Coolant Temperature)
- IAT (Intake Air Temperature)
- Oil Pressure Sensor
- Fuel Pressure Sensor
- VTEC
- Front Speed Sensor
- Rear Speed Sensor
- Boost Control Solenoid
- Alternator
Optional Coil Sub-Harnesses
- IGA1 Smart Coil Sub-Harness
Cabin Side Connections
*Strain Gauge
* CAN2 (with power and ground)
* Peak & Hold injector connectors with jumpers
* Interface connector to relays
*Rear Speed sensor
Includes PDM Basic relay
The PDM uses a 3-pin Deutsch connector for the main power, ground, and signal connections.
Simply connect power and ground to the PDM.
We recommend installing a circuit breaker between the battery and the PDM for protection.
3-Pin Deutsch Connector
The PDM has three wires:
● Power
● Ground
● Signal
For the signal wire, you have two options:
● Wire it to a switch
● Wire it directly to your vehicle’s ignition switch
Once the signal wire receives 12V, the PDM will turn on and power up the FuelTech FT550 B Series ECU.
Once you have a proper base map loaded, you’ll also be able to start the engine directly through the FuelTech ECU.
2-Pin Deutsch Connectors on PDM
The PDM has two 2-pin Deutsch connectors:
● One for the fuel pump
● One for the fan
Simply run the wires from the corresponding PDM connectors to the fuel pump and fan.
Ground both the fuel pump and fan directly to the chassis.
FuelTech Nano
To run a FuelTech Nano with the FT550 B Series, you will need:
● FuelTech Nano
● Nano harness
Power and ground for the Nano can be obtained from our dedicated CAN2 wiring, which provides:
● CAN communication
● Power
● Ground
The mating Deutsch connector and pins are provided for the CAN2 connection.
