2200CC HONDA/ACURA K20/K24 2.0 2.4 B20

Sale price$450.00

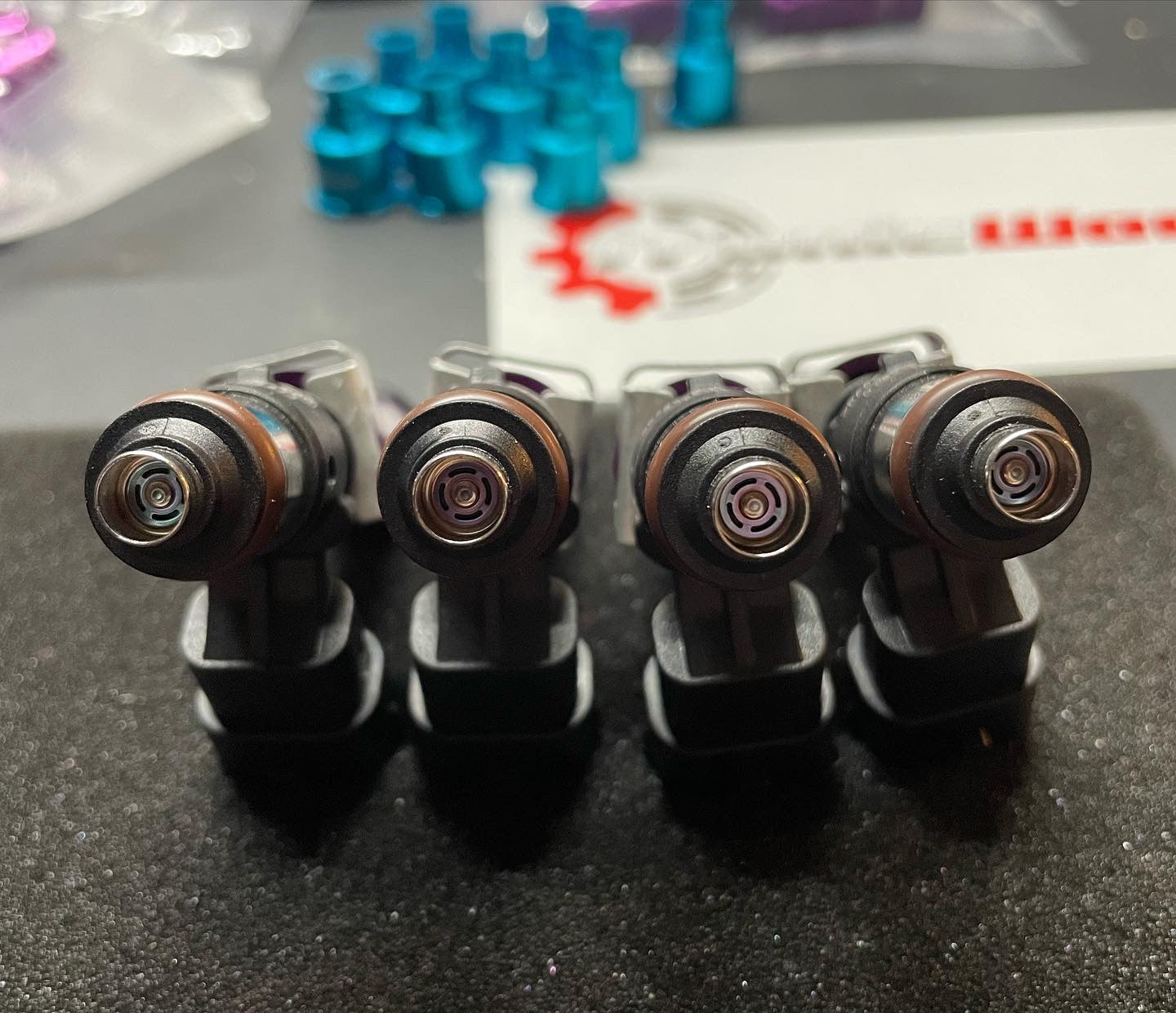

Bosch EV14 2200cc Fuel Injectors For Honda Acura B Series K20 , K24 engines !





  • Honda B, D, H , K series engines
  • Acura, B16, D15, F22, H22

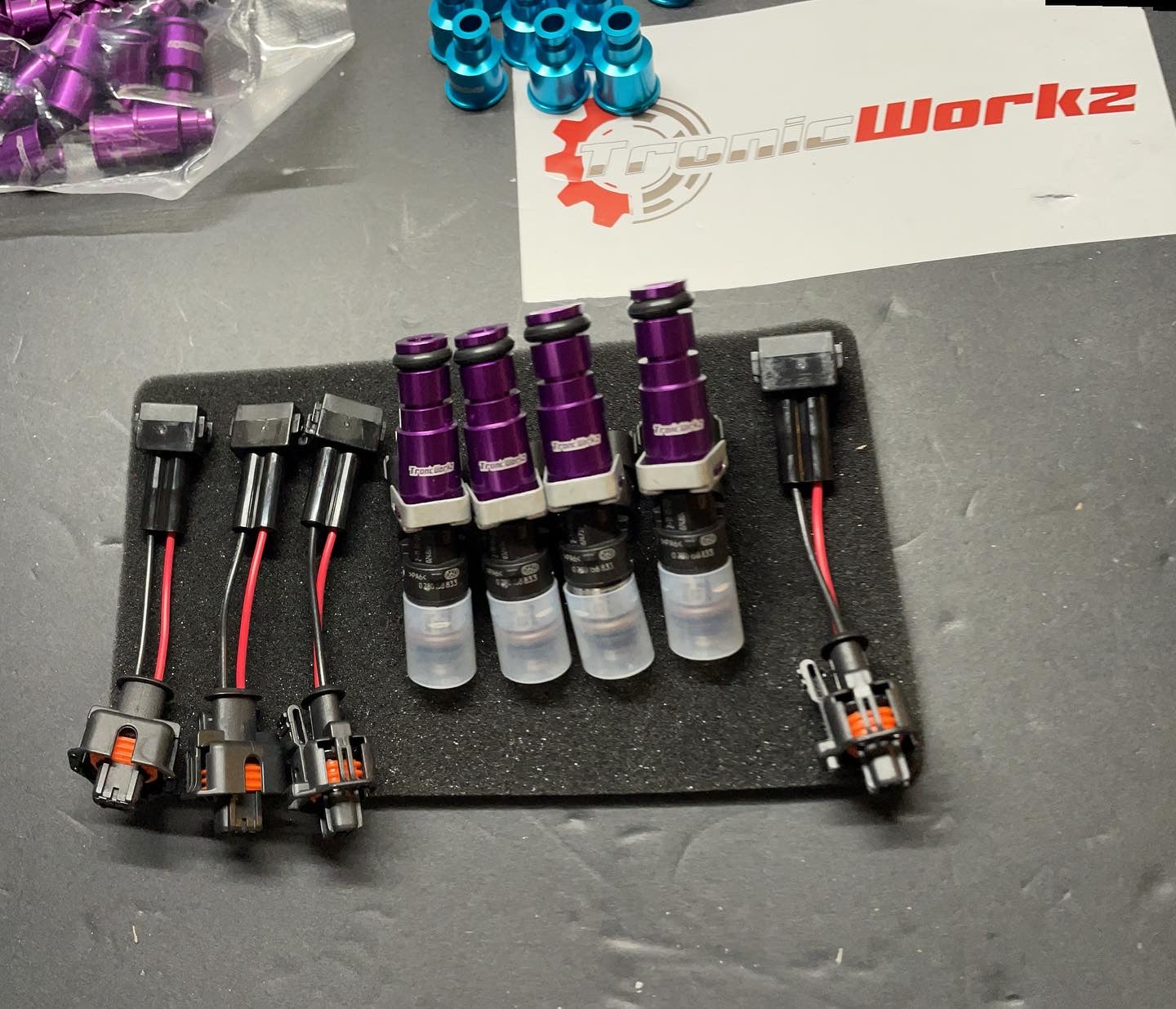

  • Electrical connector pigtail included
  • Flow data sheet and latency table included
  • Price shown is for a single (4 fuel injector



TRONICWORKZ FUEL INJECTORS are custom manufactured in small-quantity batches to achieve the highest quality product.
Our injectors are all-fuels rated; including gasoline (MTBE), and E85.
The finished injectors are then flow tested and inscribed with a control number.
Data is recorded for each injector. The fuel injectors are then grouped into matched sets ready for shipping.

FLOW CHART: sold with a complete and unique flow-data chart indicating individual static flow rates at 3.0, 3.5, and 4.0 BAR.
As well as 3.0 BAR dynamic pulse testing for idle (15% duty-cycle) and 50% duty-cycle.
Along with a complete dead time off-set (latency) table. Flow testing was done with industry-standard equipment of the highest quality.
The tests were performed at varying temperatures to achieve realistic results.
These injectors are designed for linear tuning with excellent low-end, and idle rpm.
Fiveo is the only fuel injector seller that can claim this level of technology.

SPECIAL NOTE TO OUR E85 USERS:
Ethanol based fuels tend to "dry" the fuel injector outlet orifices.
Users/tuners should be made aware that this may cause a "sticking" problem in fuel injectors that sit idle for a prolonged period of time.
It is suggested for applications running high ethanol content based fuels, to periodically incorporate into their fuel-system-maintenance a drop of light petroleum-based lubricant for each fuel injector.
This is also considered to be good maintenance, but not essential, for stainless steel based (Black-Ops Series) fuel injectors.
It should also be noted that for optimum performance the entire fuel system should be made up of ethanol approved materials including all fuel lines/fuel pump/fuel filter, etc.
